Magnetic Urethane Chamfer

Magnetic Urethane Chamfer

Composition & Key Properties of Magnetic Urethane Chamfer：
Magnetic Urethane Chamfers are engineered using high-performance urethane elastomers combined with NdFeB (neodymium) magnets. This design merges advanced material properties with magnetic adhesion capabilities:

· Durability: Urethane ensures high wear resistance (>200% longer lifespan than rubber) and impact absorption, ideal for construction machinery or high-traffic flooring.

· Magnetic Performance: Embedded NdFeB magnets provide strong adhesion (15–25 N/cm²) to steel, galvanized metal, or iron-based formwork.

· Shore Hardness Options: Two primary grades are standardized:

o 60 Shore A: Offers flexibility for curved surfaces or delicate chamfering (e.g., decorative concrete).

o 90 Shore A: High rigidity for heavy industrial use (e.g., ports, airport runways).

· Temperature Stability: Operates from -40°C to 120°C without losing elasticity or magnetic strength (if coated magnets are used).

· Chemical Resistance: Resists oils, solvents, and UV degradation, suitable for outdoor or chemical-exposed environments.

Specification of Magnetic Urethane Chamfer-For Flexible Application：

Comparison of Different Material Magnetic Chamfer:

Items	Magnetic Rubber Chamfer	Magnetic Steel Chamfer	Magnetic Urethane Chamfer

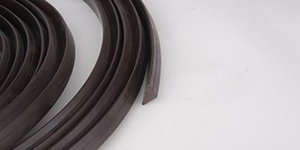

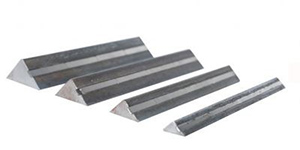

Material	The raw material of Magnetic Rubber Chamfer is rubber magnetic (same as the raw material of the refrigerator magnet).	The magnetic steel chamfer is made of steel and neodymium iron boron.	The flexible urethane has built-in neodymium magnets with strong suction force
Pull Force	<1kg/Meter,  Too weak	>75kg/Meter, Too strong and hard to remove	>7kg/Meter, Moderate pull
Adsorbed in the middle	The suction is too weak and can only be placed in the corner	Can't be sucked and can only be placed in the corner	Can't be sucked and can only be placed in the corner
Magnetic face	Only magnetic on both sides	Magnetic surfaces can be customized	Magnetic surfaces can be customized
Flexibility	Flexible	Hard and Straight	Flexible, 60 shores and 90 Shore
Service Life	Rubber will not rust	Steel will rust	Urethane will not rust
Price	Low	Middle	High

Application of Magnetic Chamfer:

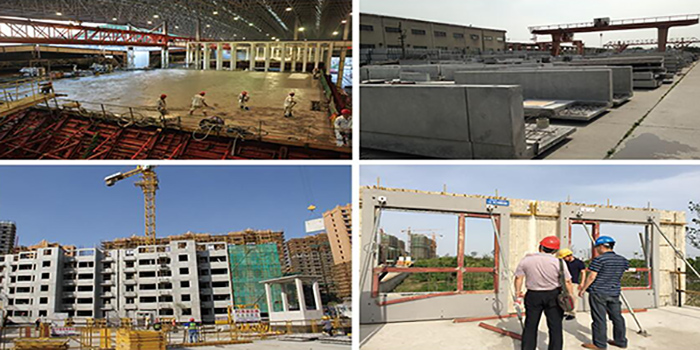

Magnetic chamfer strips are designed to create beveled edges on the corners and faces of concrete wall panels and small concrete items and faces of concrete wall panels and they are used to make indentations in the concrete to create false joints. Our strips are made of high quality steel (some encased in rubber) with built-in magnets. This means that screwing or welding on the table or on the formwork can be omitted. They are no open grooves to fill with concrete, The magnets are protected from corrosion and stay firmly in place so that they won't pull out or rust under normal use.

Why Choose Us

More than 15 years of experience in manufacturing and trading precast concrete systems. LSC's products are enhanced through factory quality control inspections during the production process. Each order can be tension tested if necessary.

 Comply with strict technical requirements and meet the market's demand for human safety. Precast concrete elements may be lifted several times after pouring and during storage and installation - by using this system, designers and workers managers can ensure that each lift is done safely and quickly.

LSC has more than 10 years of experience in OEM/ODM products, and more than 150 cooperative factories, we can provide you with competitive prices and stable quality.
