Lifting Sockets

Lifting Sockets

Lifting Socket is a special connection device embedded in concrete or steel structure for safe and efficient lifting and handling of heavy components (such as precast concrete slabs, beams, walls, industrial equipment, etc.). It provides a standardized interface that enables cranes or slings to connect quickly and transfer loads evenly, and is a core component in modern modular construction and industrial lifting.

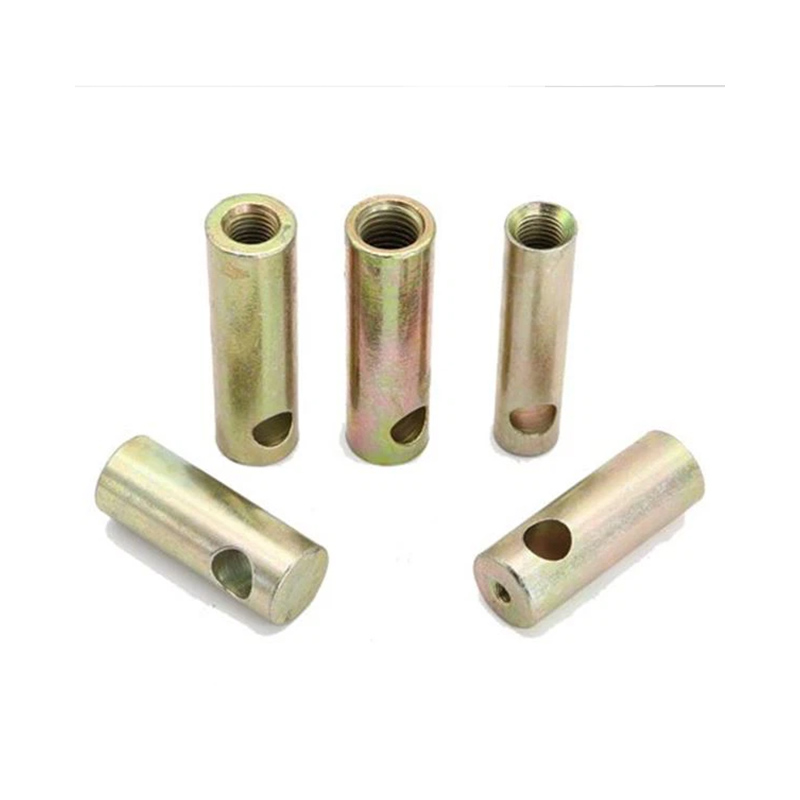

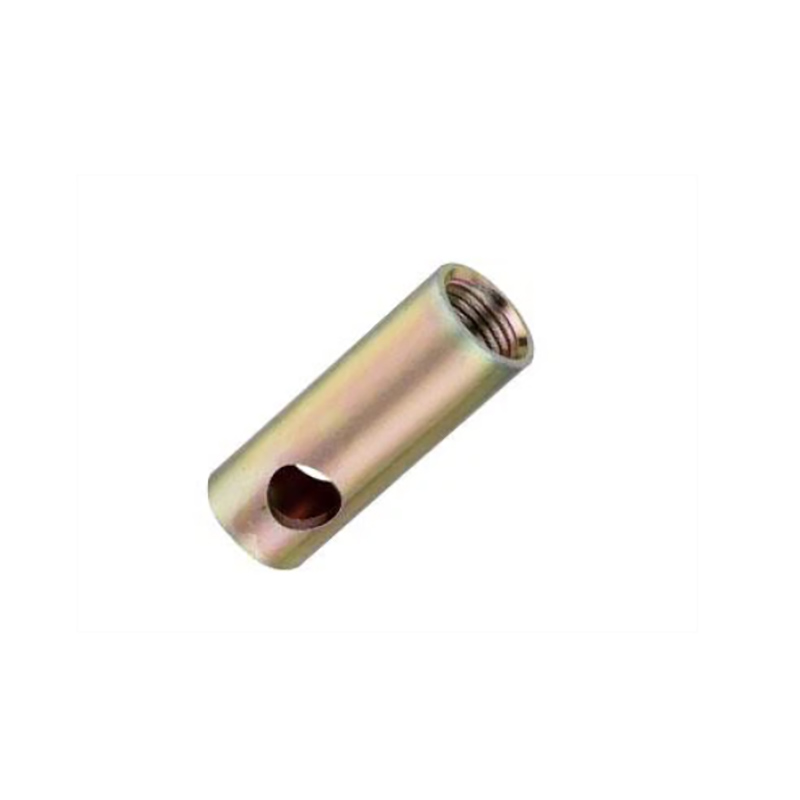

The system comprises a cast-in lifting socket that is drilled laterally below the threaded portion in order to take a reinforcing bar that is located and tied to the main reinforcement to provide the user with a positive and secure anchorage point. They are available in both stainless steel and zinc-plated steel to offer some protection against corrosion. Each socket can be supplied with two plastic inserts. The upper one (optional extra)is used to prevent the ingress of dirt into the threads whilst the lower one (standard) is used to prevent the ingress of concrete during the casting process.

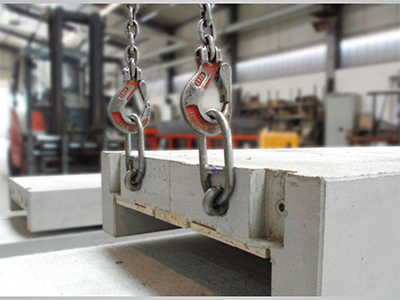

Lifting Sockets are widely used in the application of precast concrete construction, such as lifting beams, walls, floor slabs, etc.

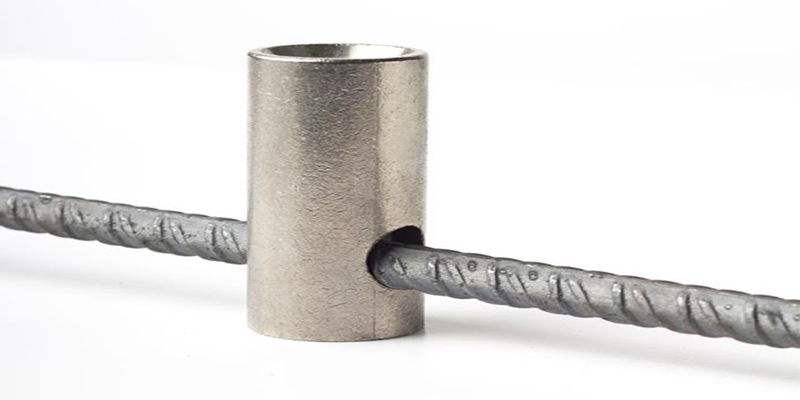

A reinforcement bar is to be inserted through the cross hole to transfer the load into the concrete, To distribute the forces into the concrete, a bent reinforcement bar of BST 500 s must be inserted through the cross hole of Lifting Sockets, The reinforcement bar can be spread or have parallel sides.

To guarantee the local force transmittance in the concrete, a certain edge distance must be observed, for safety reasons, the thickness of the panel must not fall short of a certain minimum.

Dimensions and Safe Working Loads at concrete strength of 15 N/mm2

Feature of Lifting Socket

-Available in high-grade galvanized carbon steel or stainless steel
-Available with Rd thread or metric thread by special order.

Specification of Lifting Socke

Code	Size	S.W.L	Dimensions(mm)
		KGS	L	E	D	C
LSC300112040	Rd12	500	40	22	16	8
LSC300116054	Rd16	1200	54	27	21	13
LSC300120069	Rd20	2000	69	35	27	15.5
LSC300124078	Rd24	2500	78	43	31	18
LSC300130103	Rd30	4000	103	56	40	21
LSC300136125	Rd36	6300	125	68	48	26.5
LSC300136145	Rd42	8000	145	80	54	32
LSC300152195	Rd52	12500	195	97	68	40
Other different length and metric thread are available upon request
Stainless Steel 304(A2)/316(A4)are available upon request
Safety Factory is 3:1

Core Uses

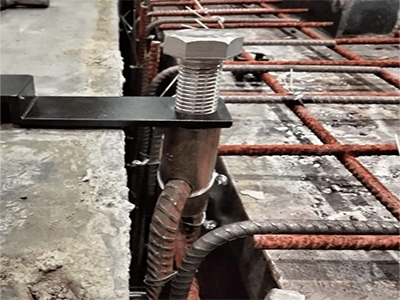

Precast concrete hoisting: embedded in wall panels, stairs, pipes and other components as standardized lifting points.

Steel structure installation: welded or bolted to steel beams and columns for equipment hoisting.

Industrial equipment handling: integrated into the base of heavy machinery for easy transportation and installation.

Why Choose Us:

As a reliable supplier from China, we have served numerous clients all over the world. We have
been working with our customers for fifteen years. We solemnly promise that our products have
the following advantages:
Fast, Secure, Efficient. Universal system for precast concrete production;
Suitable for all current formwork robots or manual handling;
Cost saving on removal of the form. Various heights& lengths are available according to your requirements.
