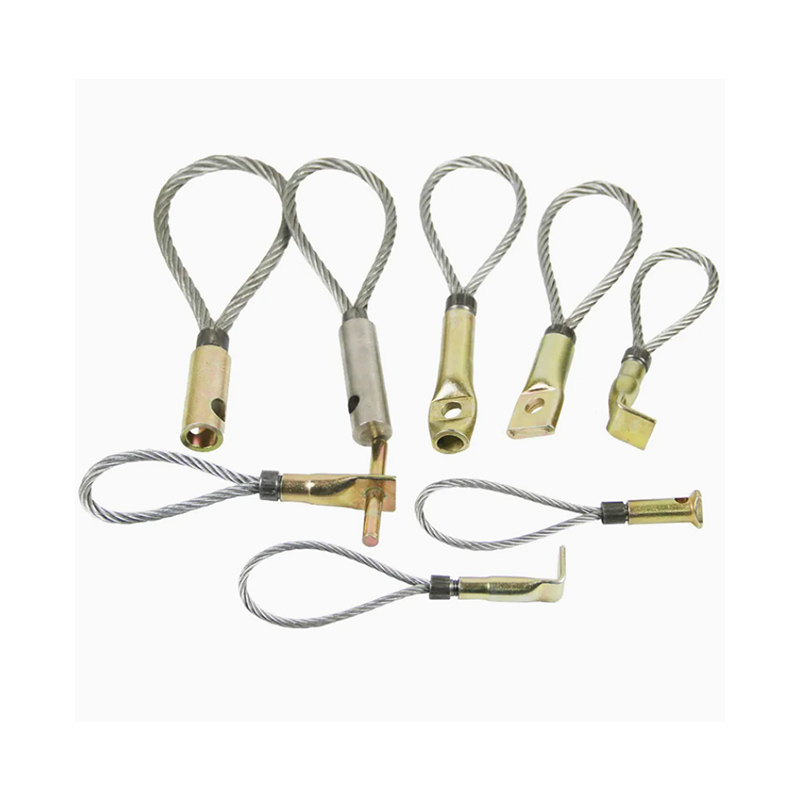

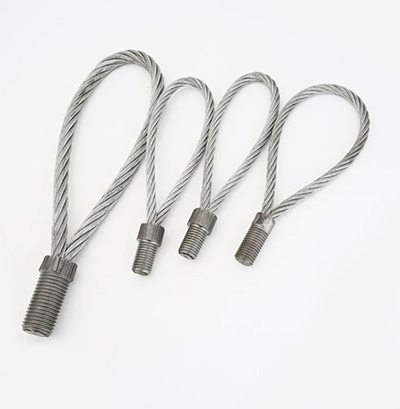

Wire Rope Lifting Loops are a cost effective method of lifting most types of pre-cast concrete units suitable for all types of threaded lifting inserts.
Our wire rope threaded lifting loops are manufactured from high specification wire swaged onto a steel ferrule, providing a strong and reliable lifting device that can be re-used, subject to being checked for damage prior to each lift All loops are clearly marked with the manufactures details, the SWL and an individual serial number to comply with regulations .
Supplied from stock in both M and Rd thread types from M12 to Rd52.
หมายเลขสินค้า :
Wire Rope Lifting Loop For Precast Concrete Elementsสั่งซื้อ(ขั้นต่ำ) :
500แหล่งกำเนิดสินค้า :
chinaเวลานำ :
7-19daysWire Rope Lifting Loop For Precast Concrete Elements

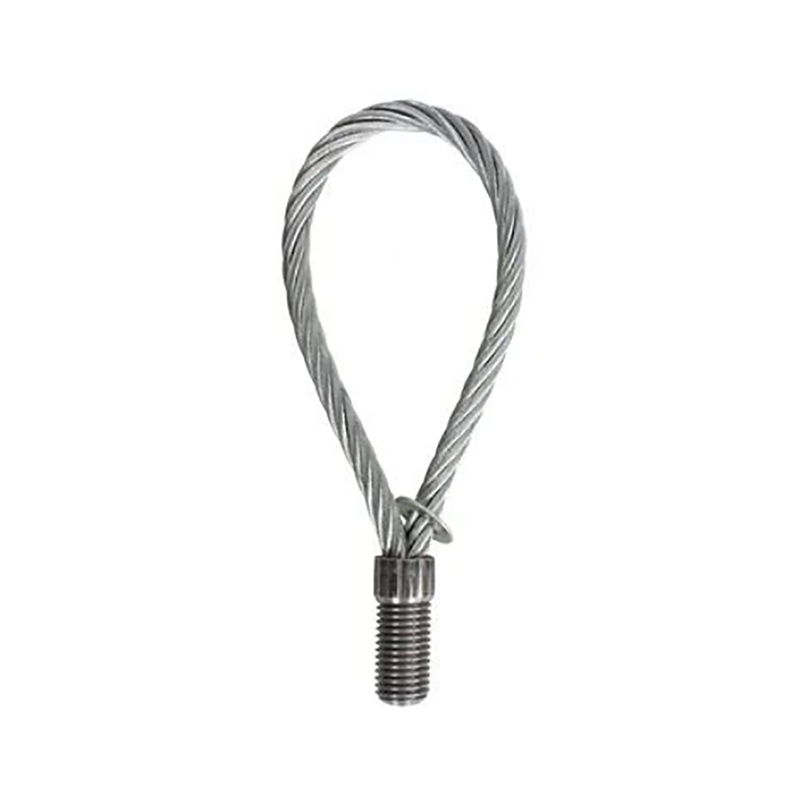

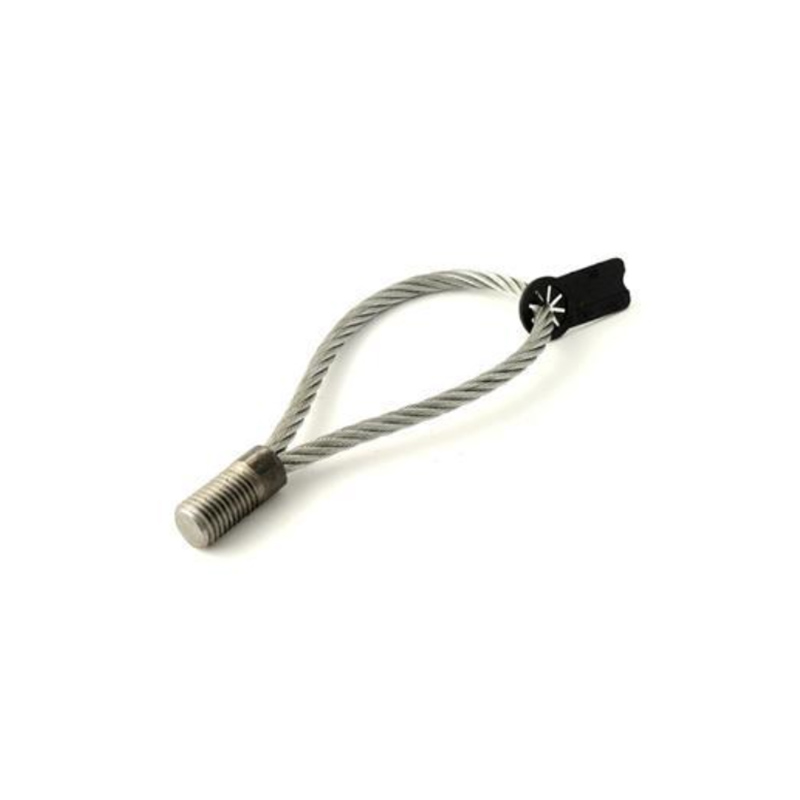

Wire Rope Lifting Loop for precast concrete components is a lifting device designed for lifting and moving precast concrete components (such as beams, slabs, wall panels, columns, etc.). It is connected to the components through an anchor system embedded in the concrete to ensure safe and efficient lifting and moving of heavy precast components during construction or transportation.
Introduction of Wire Rope Lifting Loop：
Material: Carbon Steel (Q235) Alloy steel ( Q345D)
Process: Precision Casting
Surface: Zinc Plated
Precast Concrete Lifting Loop is made of high-grade steel wire, forged in steel ferrules, and galvanized. Designed for threaded lift sockets, it provides a versatile and economical method of lifting prefabricated units for most applications, especially field operations.
Lifting loops with a pressed-on socket with thread can withstand a 45° oblique lift. If lateral loads are to be applied, a swivel eye should be used to allow the lift link to rotate 360°. The threaded lifting ring can only be attached to the equipment after the concrete strength reaches 15 MPa. In some cases, it may be economical and practical to place the loop with the equipment until the final installation.

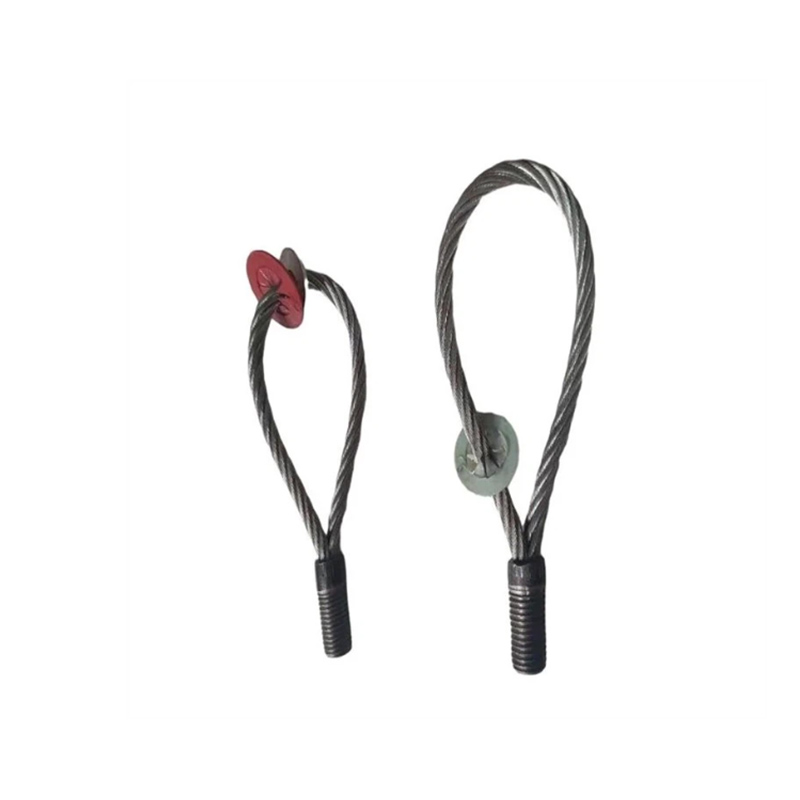

The Special Lifting Loop is a component in the thread system which serves as a lifting key.

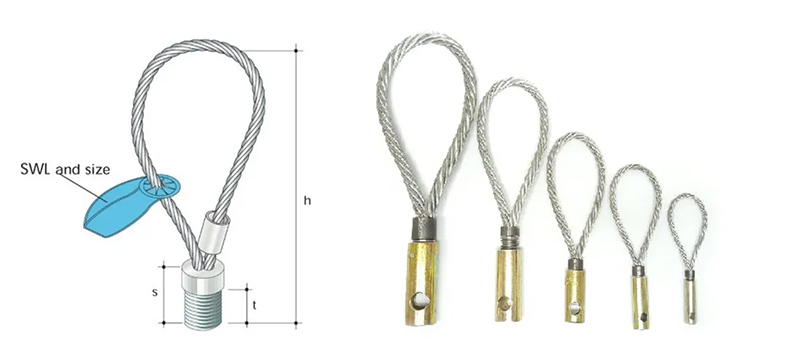

Specifications of Wire Rope Lifting Loop：
| Product Model | Thread Diameter (M/Rd) mm | Wire Diameter | Length | Safe Working Load KG | Safe Equal |
| mm | mm | times | |||
| LSC-12 | 12 | 6 | 155 | 500 | ≥4 |
| LSC-16 | 16 | 8 | 155 | 1200 | |
| LSC-20 | 20 | 10 | 215 | 2000 | |
| LSC-24 | 24 | 12 | 255 | 2500 | |
| LSC-30 | 30 | 16 | 300 | 4000 | |
| LSC-36 | 36 | 18 | 340 | 6300 | |
| LSC-42 | 42 | 20 | 450 | 8000 | |
| LSC-52 | 52 | 26 | 550 | 12500 |

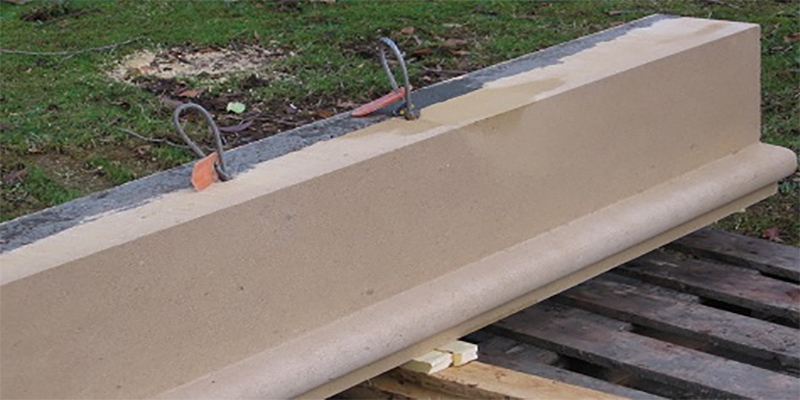

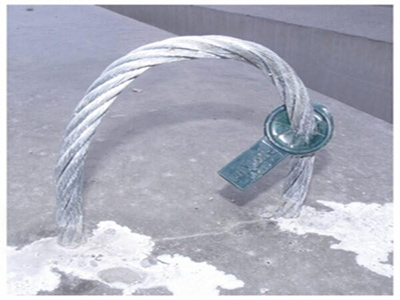

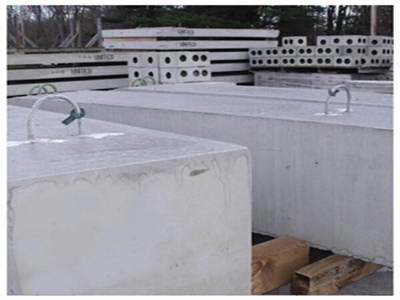

Application of Precast Concrete Lifting Loops:

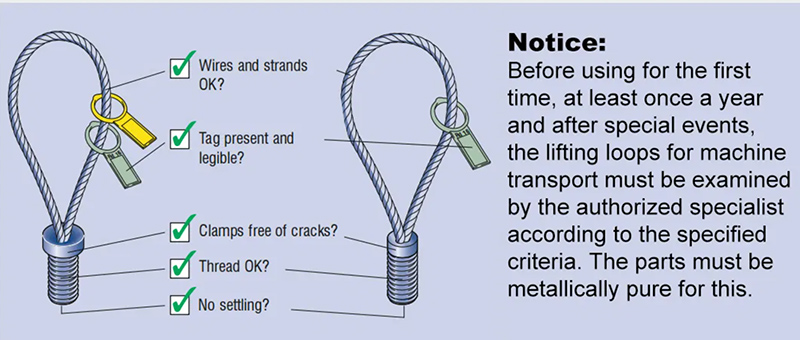

Initial Test & of Wire Rope Lifting Loop

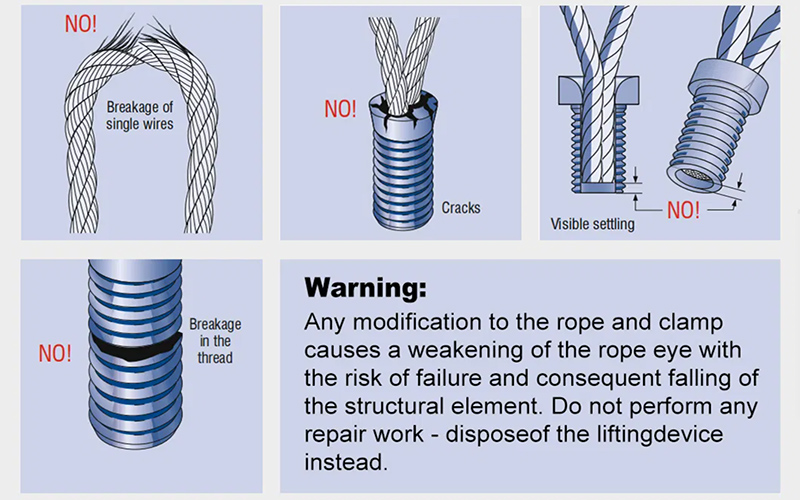

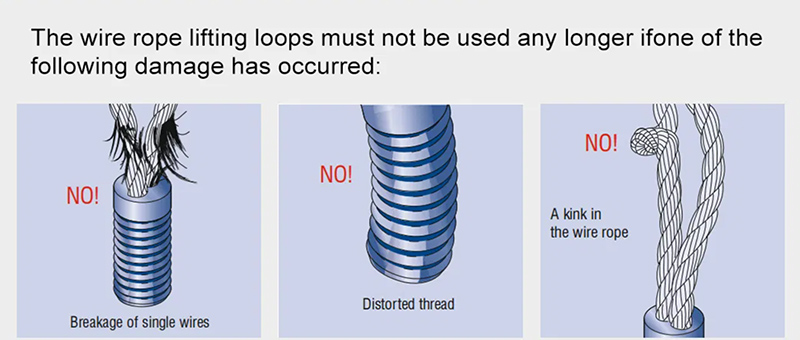

Discarding Time:

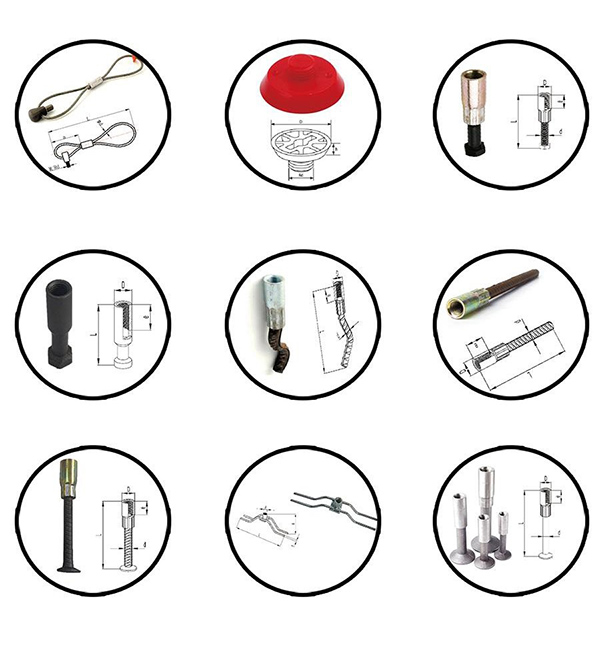

Other Hot Sale Product:
FAQ
Q1: Are you a trading company or factory?
A1: LSC is a comprehensive enterprise that not only has its own factory but also partner factories of the same standard as ours. It also has a complete supply chain, which can provide you with more comprehensive services.
Q2: Is it possible to know how are my products going on without visiting your company?
A2: Yes, it is. After the cooperation is reached, we will plan a perfect production solution for you. The Quality inspection team will track the production process and give regular feedback on the production progress to you. Our factory will also provide pictures and videos at any time. We can also let you see the real status of the order production through video calls.
Q3: What if I am not completely satisfied with the parts I received?
A3: For small parts, LSC offers pre-production and sample delivery services. You can perform various tests on samples. We will start mass production when you are satisfied. If the goods you received have any quality problems. We will take the corresponding responsibility and negotiate with you to solve the problem. For large parts, LSC recommends that you purchase a single piece for trial and then decide whether to continue the order.
Q4: How do you ensure the quality of my parts?
A4: First, LSC will provide a sample delivery service. You can test the properties of your samples. We will mass-produce the order after you are satisfied. Secondly, the quality inspection team will track the production of the order and provide feedback on the inspection data. You can also participate in on-site inspections via video calls. Thirdly, we will conduct a pre-shipment inspection to ensure that the product quality can meet your requirements. Finally, we have quality assurance services, any quality problems will be properly resolved.
Q5: If I order a big quantity, can you give me a good price?
A5: Yes, why not? We will give profits to every customer who sincerely cooperates with LSC. You can send us drawings and requirements and quantities etc. Our technical team will communicate with you and clarify more cooperation details and finally give you a more suitable production solution and a better quotation.
